- Size: 35
- Place of Origin: QUANZHOU
- Brand Name: HuDing
- Model Number: QT8-15 HM-8
- Weight: 1500.000 kg

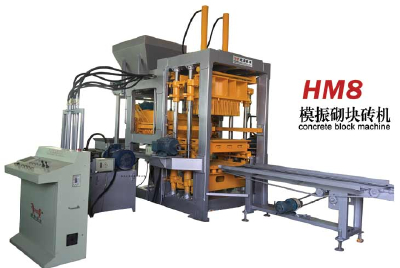

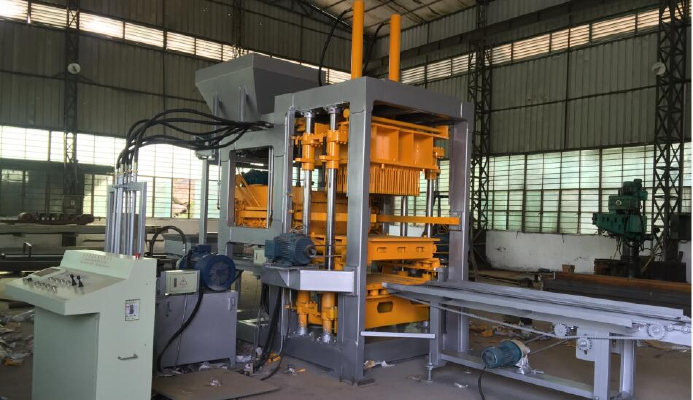

1.The Machine adopts four galvanized pipe with sleeve bearing to ensure the exact movement of mould.Gear and shaft balance system can make male and female mould move stably.Concrete feeding is revolving,convective and compulsive to ensure block density and reduce feeding cycle. Feeder moving is two curved arms drived by two cylinders,which makes feeder move quickly,durably,and steady.
2.The Mould is made with heat treatments of quenching,tempering,carbonization and boriding.Working life of mould is improved.
3.The Hydraulic System adopts Proportion Direction Valve.The Valve can adjust flow rate and buffer cylinder during the process of production.Therefore,it can protect cylinder and extend life,and Improve the speed and flexibility of each part.
4.The Vibration System adopts German Frequency Conversion Technique.The vibration motor is Frequency Conversion Controlled.The lubrication of Vibrator adopts oil immersed,which improve the using life of Bearing and Gear of vibrator.
5.Adopting International Advanced Microcomputer Control Technology to make Machine and electrical equipment to be one part.The plant can work automatically and cyclically.Our technicians put fault diagnosis,problem alarming into computer by safty logic control.The screen will timely and accurately show fault and methods to client if the machine is in error.
- Size: 35
- Place of Origin: QUANZHOU
- Brand Name: HuDing
- Model Number: QT8-15 HM-8
- Weight: 1500.000 kg
Main Machinery Parts Of QT8-15 Concrete Block Machine | |||||
Item | Item Name | Model | Power(kw) | GW(kg) | Outline Size(mm) |
1 | A. Block Main Machine | QT8-15 | 53.2 | 11000 | 7200×2450×2825mm |
B. Material Feeder Machine | |||||
C. Pallet-Conveying Machine | |||||
D. Block-conveying Machine | |||||
E. Hydraulic System & Vibration System& pump station | / | ||||
F. PLC Controlled Unit (Siemenz, Schnelder A.C. contactor) | / | ||||
G. Stacker(full-automatic hydraulic pressure, can be controlled separately or by whole) | 1.1 2.2kw | 2000 | 2630×1720×2670mm | ||
H. 10-meter Conveyor Belt | |||||
I. Block Mould (Block size can be changed as your requirements) | / | / | 900 | 1400×930mm | |
2 | Concrete Mixer | JS750 | Mixing Motor Power: 30kw | 5500kg | Transport dimensions 3636×2300×2800mm Working dimensions 4950×3636×6530mm |
3 | Batching Plant | PLD1200(3) | 10.6 | 3760kg | 8390×2000×2800mm |
Technical Specifications of QT8-15 Concrete Block Machine:
Technical Specifications of QT8-15 Hollow Concrete Block Machine | ||||||||
Item | Specifications | |||||||
(All Motors adopt 3-phase Motors with 380V,50Hz.)Price shall be adjusted if for different volt . | ||||||||
Vibration | Strong Pressure Vibration (Hydraulic Transmission) | |||||||
Rating Pressure | 32 Mpa | |||||||
Vibration Frequency | 2800-4000 times/min | |||||||
Molding Cycle | 15-18 sec. /time | |||||||
Pallet Size (Bamboo Pallet) | 1100×680×30 mm | |||||||
Pallet Size (PVC Pallet) | 1100×680×25mm | |||||||
Raw Materials | Crushed stone, sand, cement,soil powder,dust and coal fly ash, cinder, slag gangue, gravel, perlite and other industrial wastes. | |||||||
Operating Workers Required | Five to Seven Ones | |||||||
Field Areas Required | 4000-7000 ㎡ |
Production Capacity of QT8-15 Concrete Block Machine:
Production Capacity of QT8-15 Hollow Concrete Block Machine | ||||||
Items | Size (L×W×H)MM | Pcs/mould | Molding Time | Pcs/hour | Volume(m³) | Pcs/8h |
Porous Block | 240×115×90 | 20 | 14''-17'' | 5040 | 12.5 | 40320 |
Hollow Block | 390×190×190 | 7.5 | 15''-20'' | 1820 | 25.6 | 14560 |
Hollow Block | 400×200×200 | 4 | 18''-22'' | 800 | 12.8 | 6400 |
Hollow Block | 400×150×200 | 8 | 18''-22'' | 1600 | 19.2 | 12800 |
Standard(Solid) Block | 240×115×53 | 42 | 13''-16'' | 10080 | 13.9 | 80640 |
