- Place of Origin: quanzhou
- Brand Name: HuDing
- Model Number: HSY800

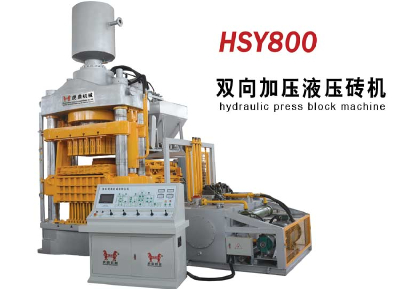

1, HSY800 hydraulic press Block machine, adopt double pressure principle, the optimization of the implementation of the hydraulic transmission.
2,Adopt to PLC full automatic control,touch screen operation, high technical, easy operation, low labor intensity, and great improve brick production.
3,HuDing Machinery design automatic brick making machine in pressed brick process multiple exhaust, to avoid the market eight panel brick machine during pressing process cannot exhaust and appear brick sandwich fault phenomenon.
4,Unique static, with low noise, low consumption features.
5,Using high technology, high accuracy import componnents and hydraulic parts, integrated circuit, electrical control, structure compact. Reasonable design is easy to after-sales maintenance, avoid eight hole brick machine more separates, more wearing parts, not easy to maintenance.
type automatic bin-direction hydraulic molding machine, consists of host machine, electric appliance, control system, hydraulic system, pneumatic system, multifunctional conveyor system, stacking system, feeding unit into a fully automatic production line.
- Place of Origin: quanzhou
- Brand Name: HuDing
- Model Number: HSY800
Main technical parameters of automatic brick making machine:
No. | 8000kN(800t) | |||
01 | Item | Specification | Mould/pcs | Hollow Ratio |
02 | Solid Brick | 240×115×52 | 28pcs | Solid |
03 | 8 holes block | 240×115×90 | 14pcs | ≈17% |
04 | 11 holes block | 240×115×90 | 14pcs | ≈23% |
05 | 11 holes block | 240×190×90 | 8pcs | ≈30% |
06 | Max height of feeding material | ≤300mm | ||
07 | Molding cycle | 18 S ~20S | ||
08 | Molding ways | Double head floating frame | ||
09 | Feeding car frame structure | Fixed rotating feeding material Pneumatic clamping brick | ||
10 | Rated pressure | 31.5Mpa | ||
11 | Allowable pressure | 25Mpa | ||
12 | Power | 90kW | ||
13 | Weight | 32000 kg |
