Product Details
- Place of Origin: QUANZHOU
- Brand Name: HuDing
- Model Number: PL800

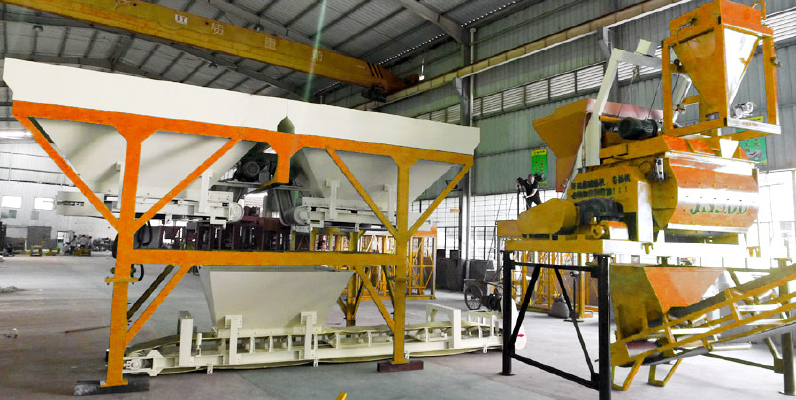

HPL Series Batching Machine is Automatic batching equipment which suitable for different construcion spotsThe features of the machine is easy operation High automatic level.
Users can form a simple concrete mixing plant using this aggregate bin in conjunction with the JS500 and JS750 concrete mixers. Our aggregate storage bin is ideal for industrial and civil building projects, small and medium construction sites, and precast concrete factories, in order to produce high quality concrete products. (Bulk cement containers and cement scales can also be installed on the aggregate bin).
- Place of Origin: QUANZHOU
- Brand Name: HuDing
- Model Number: PL800
| Model | PL800 | PL1200 |
| Cubage of weighing hopper | 0.8m³ | 1.2m³ |
| Cubage of reserve hopper | 2×4m³ | 3×4m³ |
| Productivity | 48m³/h | 72m³/h |
| Batching precision | ±2% | ±2% |
| Max. Metage | 1500kg | 2000kg |
| Batching category | 2 | 3 |
| Loading height | 2750mm | 2750mm |
| Measurement | Electronic | Electronic |
| Power | 6.6kW | 11.7kW |
| Weight | 2300kg | 4000kg |
| Dimension（L×W×H） | 5656×2245×3079 mm | 8486×2245×3079mm |
